Arduino Sonar Radar System

Project Overview

This project simulates a simple radar system using an Arduino, an ultrasonic sensor, a servo motor, an active buzzer, and an LED. I chose this to complement my NASA RC Rover design—adding obstacle detection for planetary exploration scenarios where visibility and control are limited.

Hardware Inputs

Hardware Outputs

Core Functions

1. Sweep sensor from 15° to 165° via servo.
2. Measure distance at each angle.
3. If distance < 20 cm, turn buzzer & LED ON; otherwise OFF.
4. Send “angle,distance.” over serial.
5. Reverse sweep 165° → 15° and repeat.

Design & Calculations

LED current-limiting resistor: 220 Ω (~20 mA).
Sampling interval: ~30 ms per step (delay(30) in code).
No external capacitors used.

Discussion & Improvements

• Reliable detection up to 40 cm; consistent alerts within 20 cm.
• Limitation: cannot identify object shape/type, only distance.
• Future: add green “no‐object” LED, multi‐sensor 360° scanning, local LCD display, filtering.

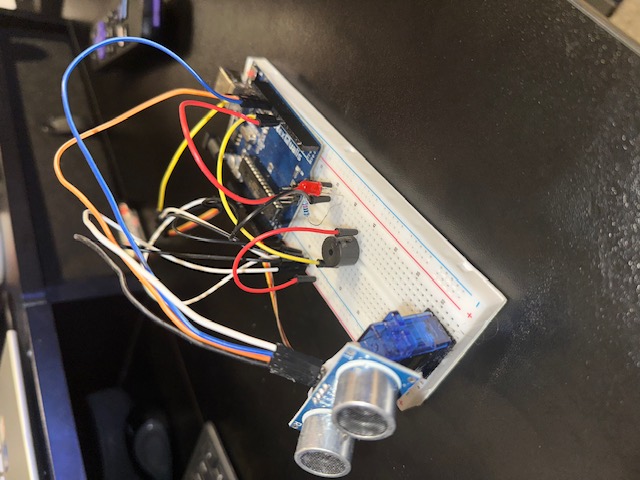

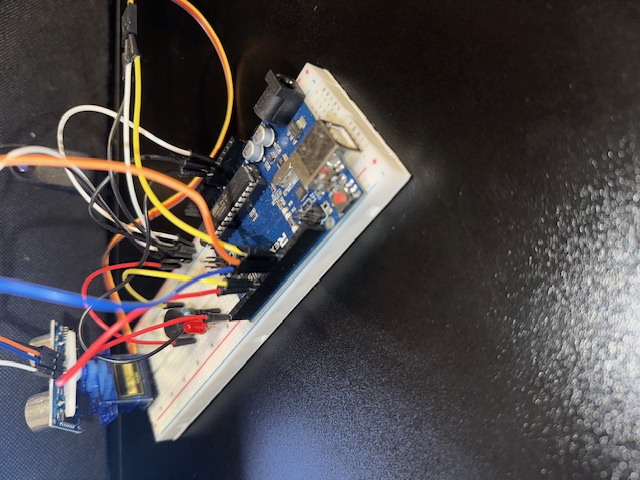

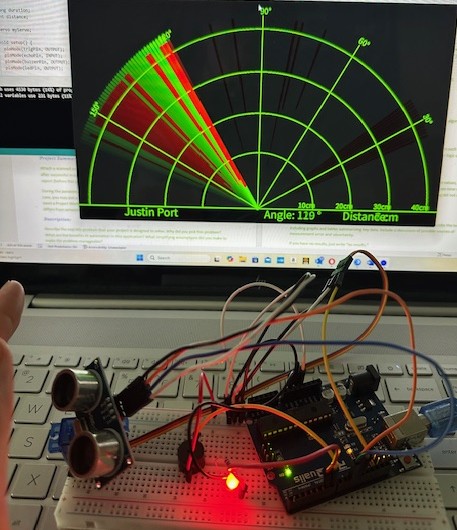

Photo Gallery

Arduino IDE Code

// Includes the Servo library
#include

// Defines Trig and Echo pins of the Ultrasonic Sensor
const int trigPin = 10;
const int echoPin = 11;
const int buzzerPin = 7; // Active buzzer (LOW = on)
const int ledPin    = 6; // Red LED (HIGH = on)

long duration;
int distance;
Servo myServo;

void setup() {
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  pinMode(buzzerPin, OUTPUT);
  pinMode(ledPin, OUTPUT);
  digitalWrite(buzzerPin, HIGH); // OFF
  digitalWrite(ledPin, LOW);     // OFF
  Serial.begin(9600);
  myServo.attach(12);
}

void loop() {
  // Sweep out
  for (int i = 15; i <= 165; i++) {
    myServo.write(i);
    delay(30);
    distance = calculateDistance();
    if (distance > 0 && distance < 20) {
      digitalWrite(buzzerPin, LOW);
      digitalWrite(ledPin, HIGH);
    } else {
      digitalWrite(buzzerPin, HIGH);
      digitalWrite(ledPin, LOW);
    }
    Serial.print(i); Serial.print(",");
    Serial.print(distance); Serial.print(".");
  }
  // Sweep back
  for (int i = 165; i > 15; i--) {
    myServo.write(i);
    delay(30);
    distance = calculateDistance();
    if (distance > 0 && distance < 20) {
      digitalWrite(buzzerPin, LOW);
      digitalWrite(ledPin, HIGH);
    } else {
      digitalWrite(buzzerPin, HIGH);
      digitalWrite(ledPin, LOW);
    }
    Serial.print(i); Serial.print(",");
    Serial.print(distance); Serial.print(".");
  }
}

// Return distance in cm
int calculateDistance() {
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  return duration * 0.034 / 2;
}


Processing 4 Sketch

import processing.serial.*;     // serial library
import java.awt.event.KeyEvent; // for keyboard events
import java.io.IOException;

Serial myPort;               // serial object
String angle = "", distance = "", data = "", noObject;
float pixsDistance;
int iAngle, iDistance;

void setup() {
  size(1200, 700);            // match your screen
  smooth();
  myPort = new Serial(this, "COM3", 9600);
  myPort.bufferUntil('.');
}

void draw() {
  // fade effect
  noStroke();
  fill(0,4);
  rect(0, 0, width, height - height*0.065);

  // draw radar
  stroke(98,245,31);
  strokeWeight(2);
  noFill();
  pushMatrix();
  translate(width/2, height - height*0.074);
  arc(0,0, width - width*0.0625, width - width*0.0625, PI, TWO_PI);
  arc(0,0, width - width*0.27, width - width*0.27, PI, TWO_PI);
  arc(0,0, width - width*0.479, width - width*0.479, PI, TWO_PI);
  arc(0,0, width - width*0.687, width - width*0.687, PI, TWO_PI);
  line(-width/2,0, width/2,0);
  popMatrix();

  // draw scan line
  stroke(30,250,60);
  strokeWeight(9);
  pushMatrix();
  translate(width/2, height - height*0.074);
  line(0,0,
    (height - height*0.12)*cos(radians(iAngle)),
    -(height - height*0.12)*sin(radians(iAngle))
  );
  popMatrix();

  // draw object blip
  stroke(255,10,10);
  strokeWeight(9);
  pixsDistance = iDistance * ((height - height*0.1666) * 0.025);
  if (iDistance < 40) {
    pushMatrix();
    translate(width/2, height - height*0.074);
    line(
      pixsDistance*cos(radians(iAngle)),
      -pixsDistance*sin(radians(iAngle)),
      (width - width*0.505)*cos(radians(iAngle)),
      -(width - width*0.505)*sin(radians(iAngle))
    );
    popMatrix();
  }

  // draw text overlay
  fill(0);
  noStroke();
  rect(0, height - height*0.065, width, height);
  fill(98,245,31);
  textSize(40);
  text("Justin Port", 50, height - 20);
  textSize(25);
  text("Angle: " + iAngle + "°", 400, height - 20);
  text("Distance: " + iDistance + " cm", 700, height - 20);
}

void serialEvent(Serial p) {
  data = p.readStringUntil('.');
  data = data.substring(0, data.length() -1);
  int comma = data.indexOf(',');
  angle    = data.substring(0, comma);
  distance = data.substring(comma+1);
  iAngle    = int(angle);
  iDistance = int(distance);
}
